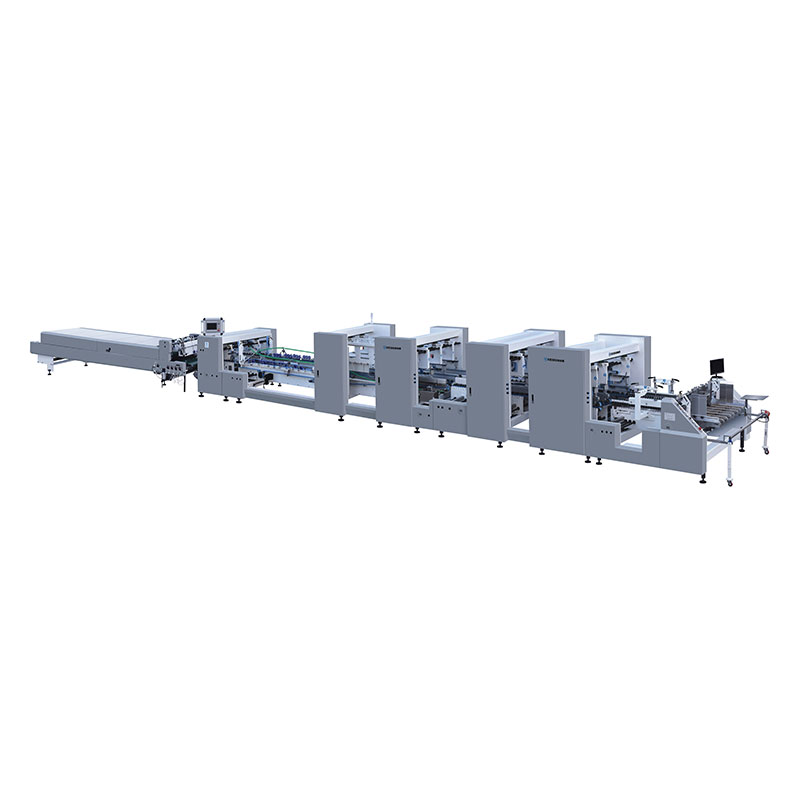

Automatická rohová složka 4 a 6 Gluer

This Automatic 4 and 6 corner Folder Gluer Machine is efficient and stable. The whole machine power is transmitted by a multi-belt, making the machine run faster and more linear. Modularity can be freely combined, and the functions can be upgraded later. The extra-long press makes the box bonding more solid. Independent electric box, exquisite and beautiful, with stronger anti-interference ability.

Machine Parameters

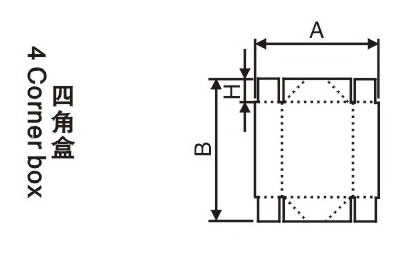

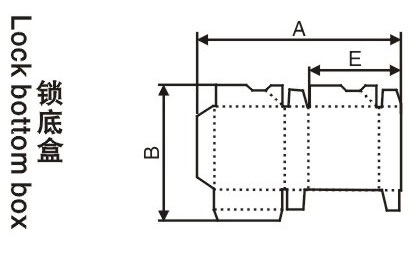

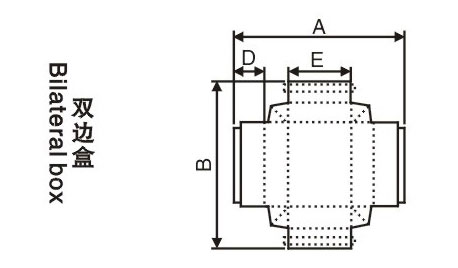

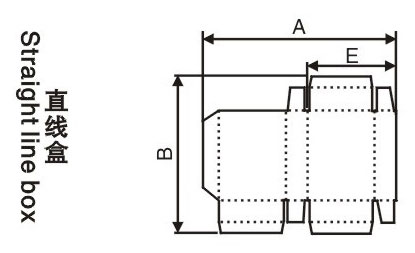

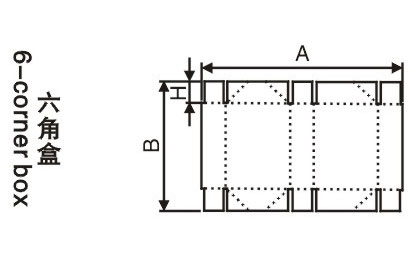

Box Type

Automatic 4 and 6 corner Folder Gluer Machine is widely used in medicine boxes, cosmetic boxes, toothpaste boxes, wine boxes, food boxes, gift boxes and other packaging boxes without bottom hooks.

Model			MFG-1250 C	MFG-1450 C	MFG-1650 C
		Min/mm	Max/mm
	A	100mm	1250mm	1450mm	1650mm
	B	180mm	1000mm	1000mm	1000mm
	E	85mm	600mm	715mm	815mm
	A	200mm	1050mm	1400mm	1600mm
	B	100mm	1000mm	1000mm	1000mm
	E	90mm	515mm	690mm	790mm
	A	180mm	1050mm	1400mm	1600mm
	B	140mm	1000mm	1000mm	1000mm
	H	30mm	150mm	150mm	150mm
	A	180mm	1050mm	1400mm	1600mm
	B	140mm	1000mm	1000mm	1000mm
	H	30mm	150mm	150mm	150mm
	A	220mm	1000mm	1200mm	1400mm
	B	140mm	1000mm	1000mm	1000mm
	E	15mm	50mm	50mm	50mm

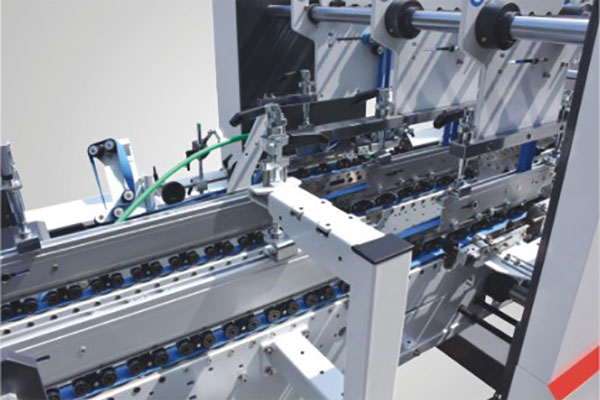

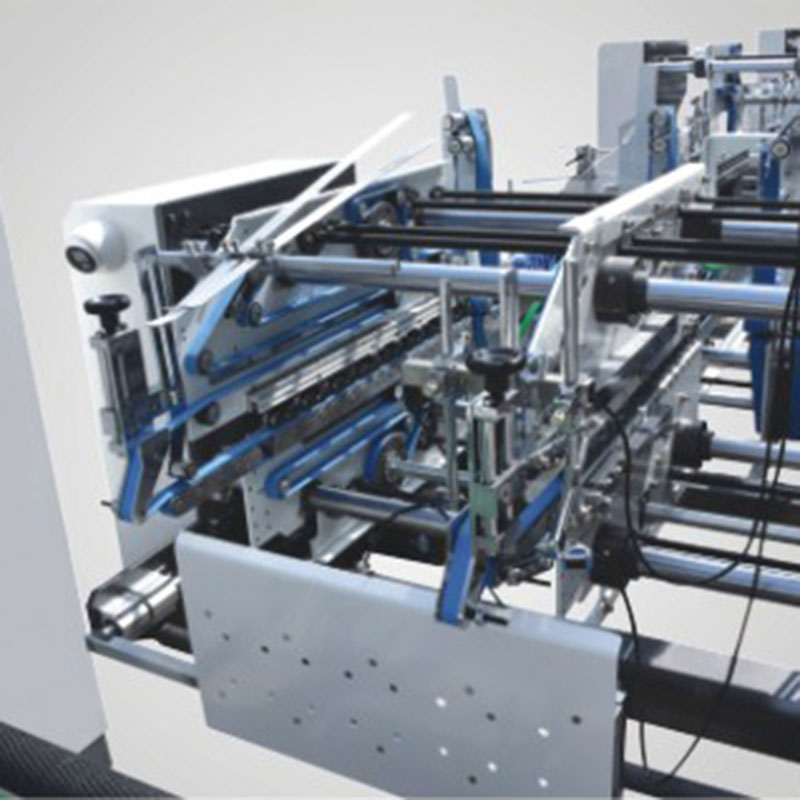

Partial pictures of machine

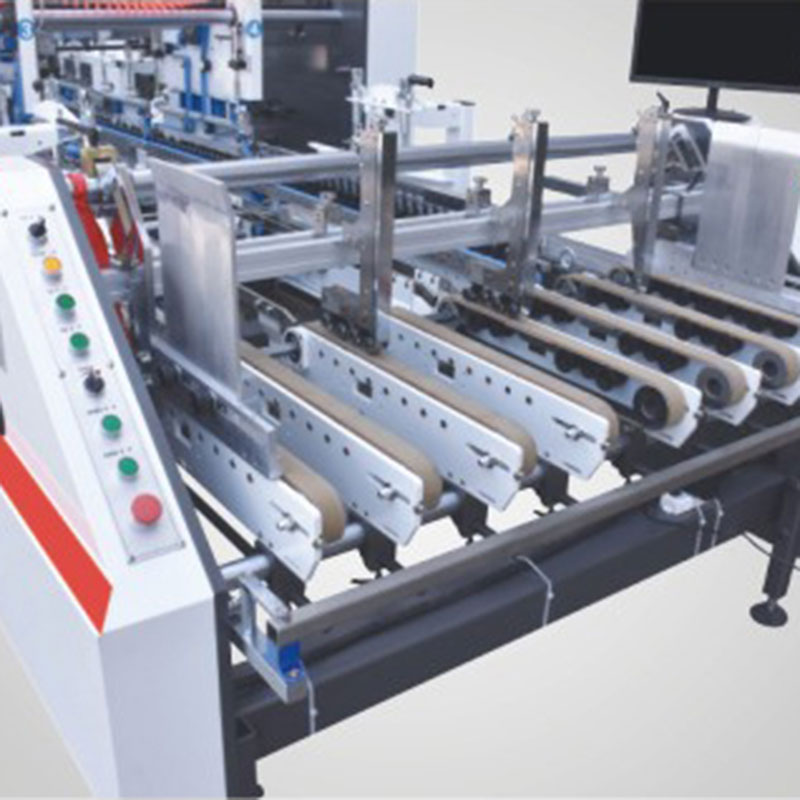

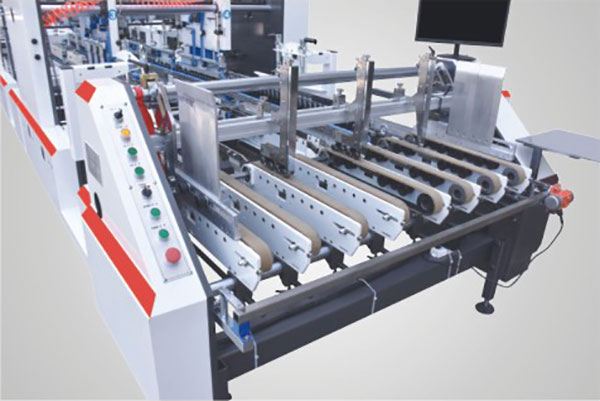

Paper Feeding Section

Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.
Operators can operate feeder switch in any regional.
Independently motorized motor control, simultaneous feeding mode with the main motor.
Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample.
Embossing drive wheel guide the feeding section belt, side feed gates in the right and left are adjustable according to the products.
Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply.
Feeder section can stack 400MM height paper board.

Pre-folding section

Special first folding line pre-fold 180°. third line 165° ,which perfectly meeting the requirements of automatic packaging industry.

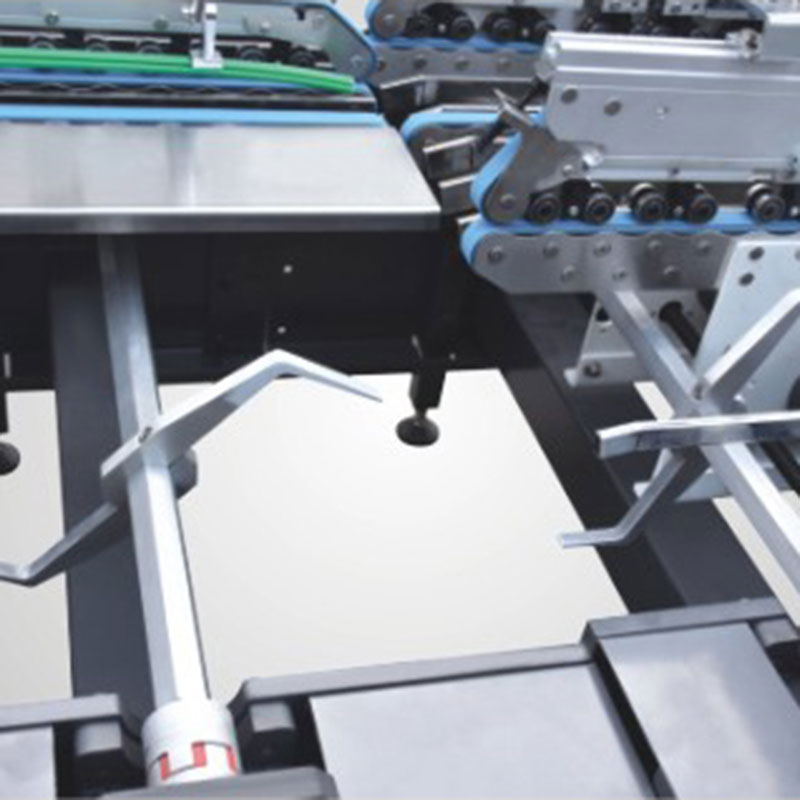

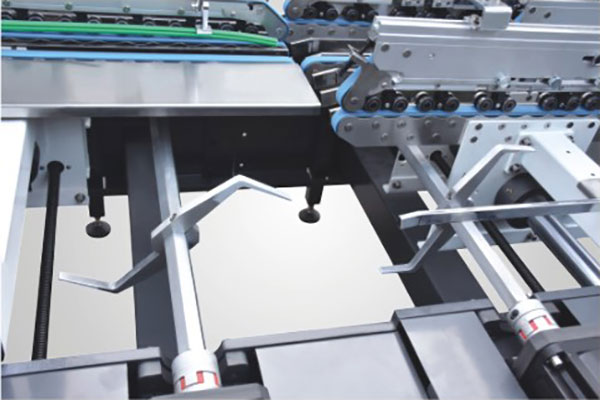

Lock bottom Section

Board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming.
The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.

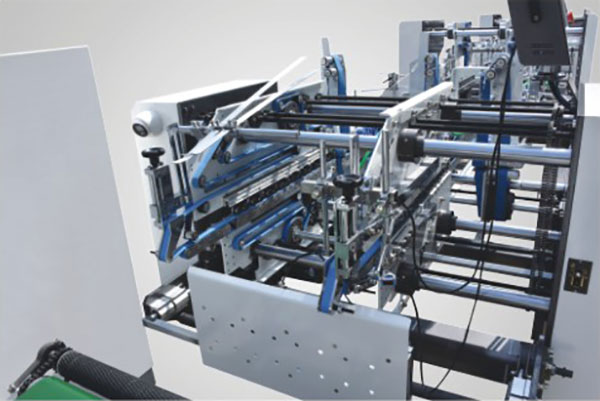

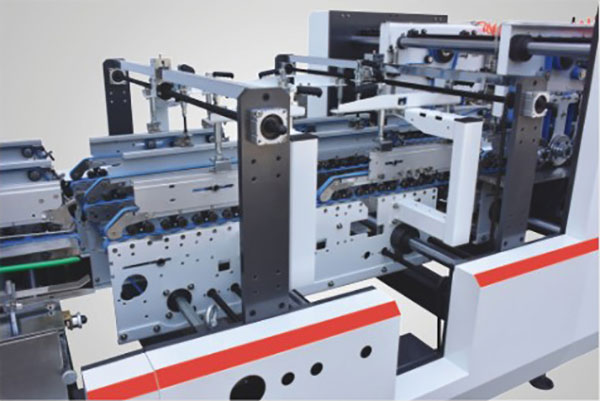

4 and 6-corner device

Motorized and untimed electronic back folding system with intelligent servo motor technology

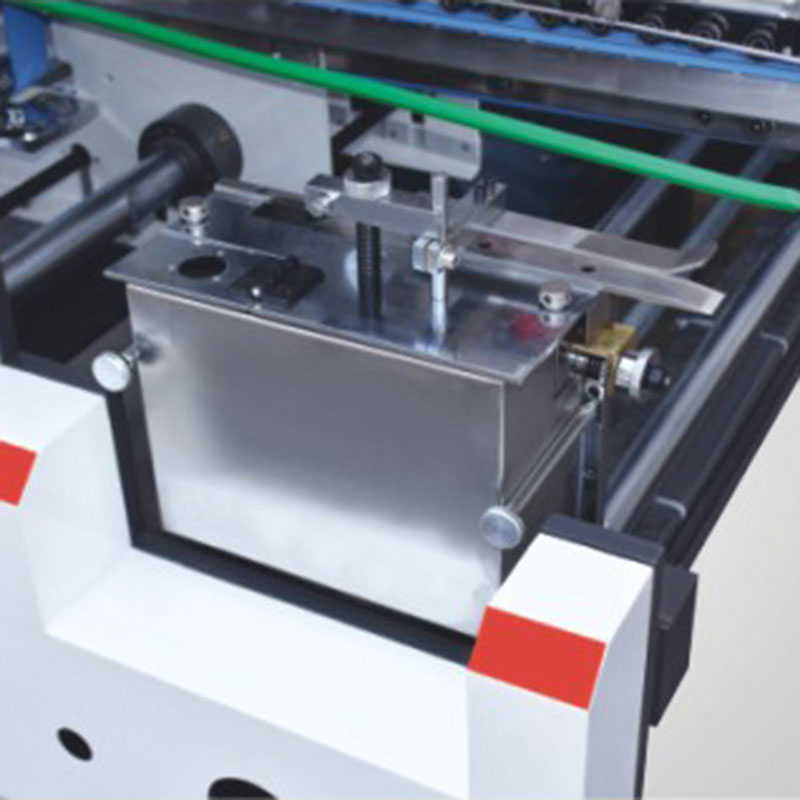

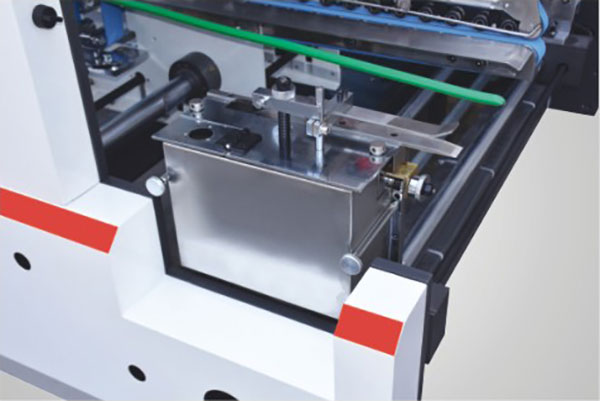

Lower gluing tank

Lower gluing tank is large volume.
Easy to remove and clean
Electronic upper gluing system by guns.

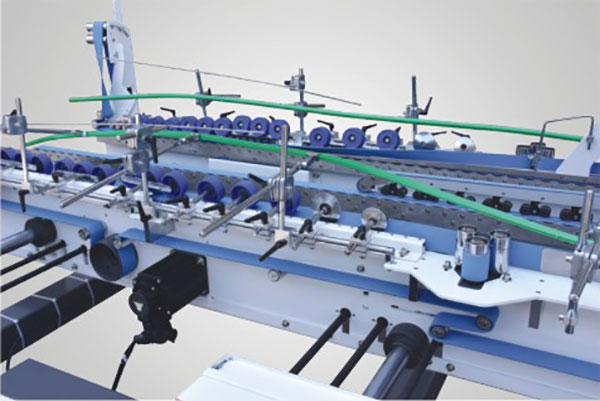

Folding and closing

The Second and fourth folding line 180° Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.

Transfer Section

Independent drive for complete control and faster job change
Synchronized kicker adjusts to carton arrival time
Adjustable transfer conveyors adapt to difficult box shapes
Height adjustable for a perfect box stream

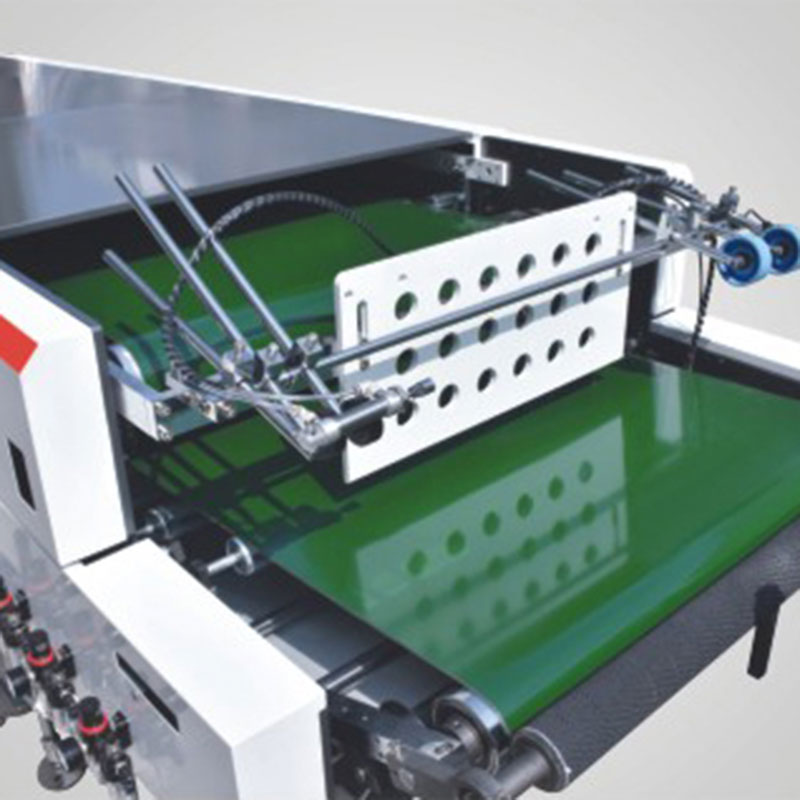

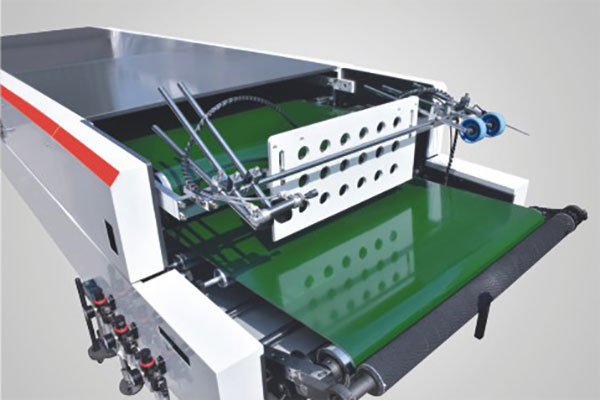

Conveyor

Integrated box stream regulator for precise stream intervals and faster running
In manual mode, the belt moves at a constant speed and is not affected by the main motor speed.
Pneumatic pressure control is more accurate, to ensure bonding effect.
